Check the fit of an estimated model using global envelope tests

Source: R/check_model_fit.R
check_model_fit.Rd

Performs global envelope tests for nonparametric L, F, G, J, E, and V summary functions (spatstat/GET). These tests assess goodness-of-fit of the estimated model relative to a reference marked point pattern. The reference marked point pattern can be supplied directly via reference_data (a marked ppp object), or derived internally from a ldmppr_fit object.

Usage

check_model_fit(
  reference_data = NULL,
  t_min = 0,
  t_max = 1,
  process = c("self_correcting"),
  process_fit = NULL,
  anchor_point = NULL,
  raster_list = NULL,
  scaled_rasters = FALSE,
  mark_model = NULL,
  xy_bounds = NULL,
  include_comp_inds = FALSE,
  thinning = TRUE,
  edge_correction = "none",
  competition_radius = 15,
  n_sim = 2500,
  save_sims = TRUE,
  verbose = TRUE,
  seed = 0,
  parallel = FALSE,
  num_cores = max(1L, parallel::detectCores() - 1L),
  set_future_plan = FALSE,
  mark_mode = NULL,
  fg_correction = c("km", "rs"),
  max_attempts = NULL
)

Arguments

reference_data

(optional) a marked ppp object for the reference dataset. If NULL, the reference pattern is derived from process_fit when process_fit is an ldmppr_fit and contains data_original (preferred) or data with columns (x,y,size).

t_min

minimum value for time.

t_max

maximum value for time.

process

type of process used (currently supports "self_correcting").

process_fit

either an ldmppr_fit object (from estimate_process_parameters) or a numeric vector of length 8 giving the process parameters.

anchor_point

(optional) vector of (x,y) coordinates of the point to condition on. If NULL, inferred from the reference data (largest mark if available) or from ldmppr_fit.

raster_list

(optional) list of raster objects used for mark prediction. Required when mark_mode='mark_model' unless rasters are stored in mark_model.

scaled_rasters

TRUE or FALSE indicating whether rasters are already scaled. Ignored when mark_mode='time_to_size'.

mark_model

a mark model object used when mark_mode='mark_model'. May be an ldmppr_mark_model, model_fit, or workflow.

xy_bounds

(optional) vector of bounds as c(a_x, b_x, a_y, b_y). If NULL, will be inferred from reference_data's window when reference_data is provided, otherwise from ldmppr_fit with lower bounds assumed to be 0.

include_comp_inds

TRUE or FALSE indicating whether to compute competition indices.

thinning

TRUE or FALSE indicating whether to use the thinned simulated values.

edge_correction

type of edge correction to apply ("none" or "toroidal").

competition_radius

positive numeric distance used when include_comp_inds = TRUE.

n_sim

number of simulated datasets to generate.

save_sims

TRUE or FALSE indicating whether to save and return the simulated metrics.

verbose

TRUE or FALSE indicating whether to show progress of model checking. When TRUE, progress is reported via progressr (if available) and is compatible with parallel execution.

seed

integer seed for reproducibility.

parallel

TRUE or FALSE. If TRUE, simulations run in parallel via furrr/future. For small simulation sizes, parallel overhead may outweigh speed gains.

num_cores

number of workers to use when parallel=TRUE. Defaults to one fewer than detected cores.

set_future_plan

TRUE or FALSE. If TRUE and parallel=TRUE, set a temporary future plan internally and restore the previous plan on exit.

mark_mode

(optional) mark generation mode: "mark_model" uses predict() on a mark model, while "time_to_size" maps simulated times back to sizes via delta. If NULL, inferred as "mark_model" when mark_model is provided, otherwise "time_to_size".

fg_correction

correction used for F/G/J summaries ("km" or "rs").

max_attempts

maximum number of simulation attempts when rejection occurs due to non-finite summaries.

Value

an object of class "ldmppr_model_check".

Details

This function relies on the spatstat package for the calculation of the point pattern metrics and the GET package for the global envelope tests. The L, F, G, J, E, and V functions are a collection of non-parametric summary statistics that describe the spatial distribution of points and marks in a point pattern. See the documentation for Lest(), Fest(), Gest(), Jest(), Emark(), and Vmark() for more information. Also, see the global_envelope_test() function for more information on the global envelope tests.

References

Baddeley, A., Rubak, E., & Turner, R. (2015). *Spatial Point Patterns: Methodology and Applications with R*. Chapman and Hall/CRC Press, London. ISBN 9781482210200. Available at: https://www.routledge.com/Spatial-Point-Patterns-Methodology-and-Applications-with-R/Baddeley-Rubak-Turner/p/book/9781482210200.

Myllymäki, M., & Mrkvička, T. (2023). GET: Global envelopes in R. arXiv:1911.06583 [stat.ME]. doi:10.48550/arXiv.1911.06583 .

Examples

# Note: The example below is provided for illustrative purposes and may take some time to run.
# \donttest{
data(small_example_data)

file_path <- system.file("extdata", "example_mark_model.rds", package = "ldmppr")
mark_model <- load_mark_model(file_path)

raster_paths <- list.files(system.file("extdata", package = "ldmppr"),
                           pattern = "\\.tif$", full.names = TRUE)
raster_paths <- raster_paths[!grepl("_med\\.tif$", raster_paths)]
rasters <- lapply(raster_paths, terra::rast)
scaled_raster_list <- scale_rasters(rasters)

reference_data <- generate_mpp(
  locations = small_example_data[, c("x", "y")],
  marks = small_example_data$size,
  xy_bounds = c(0, 25, 0, 25)
)
#> Registered S3 method overwritten by 'spatstat.geom':
#>   method       from
#>   print.metric yardstick

estimated_parameters <- c(
  0.05167978, 8.20702166, 0.02199940, 2.63236890,
  1.82729512, 0.65330061, 0.86666748, 0.04681878
)

# Keep parallel=FALSE in examples to avoid setup overhead.
example_model_fit <- check_model_fit(
  reference_data = reference_data,
  t_min = 0,
  t_max = 1,
  process = "self_correcting",
  process_fit = estimated_parameters,
  raster_list = scaled_raster_list,
  scaled_rasters = TRUE,
  mark_model = mark_model,
  xy_bounds = c(0, 25, 0, 25),
  include_comp_inds = TRUE,
  thinning = TRUE,
  edge_correction = "none",
  competition_radius = 10,
  n_sim = 100,
  save_sims = FALSE,
  verbose = TRUE,
  seed = 90210,
  parallel = FALSE
)
#> [ldmppr::check_model_fit]
#> Checking model fit
#>   mark_mode=mark_model, n_sim=100, parallel=FALSE
#>   include_comp_inds=TRUE, edge_correction=none
#> Step 1/4: Preparing simulation setup
#> Using FGJ r-grid from reference: 1:198 (max r=2.405), correction=km
#>   Done in 0.1s.
#> Step 2/4: Generating accepted simulations
#>   Done in 8.5s.
#> Step 3/4: Computing envelope tests
#>   Done in 0.6s.
#> Step 4/4: Finalizing output object
#>   Done in 9.2s.
#> Model check complete.

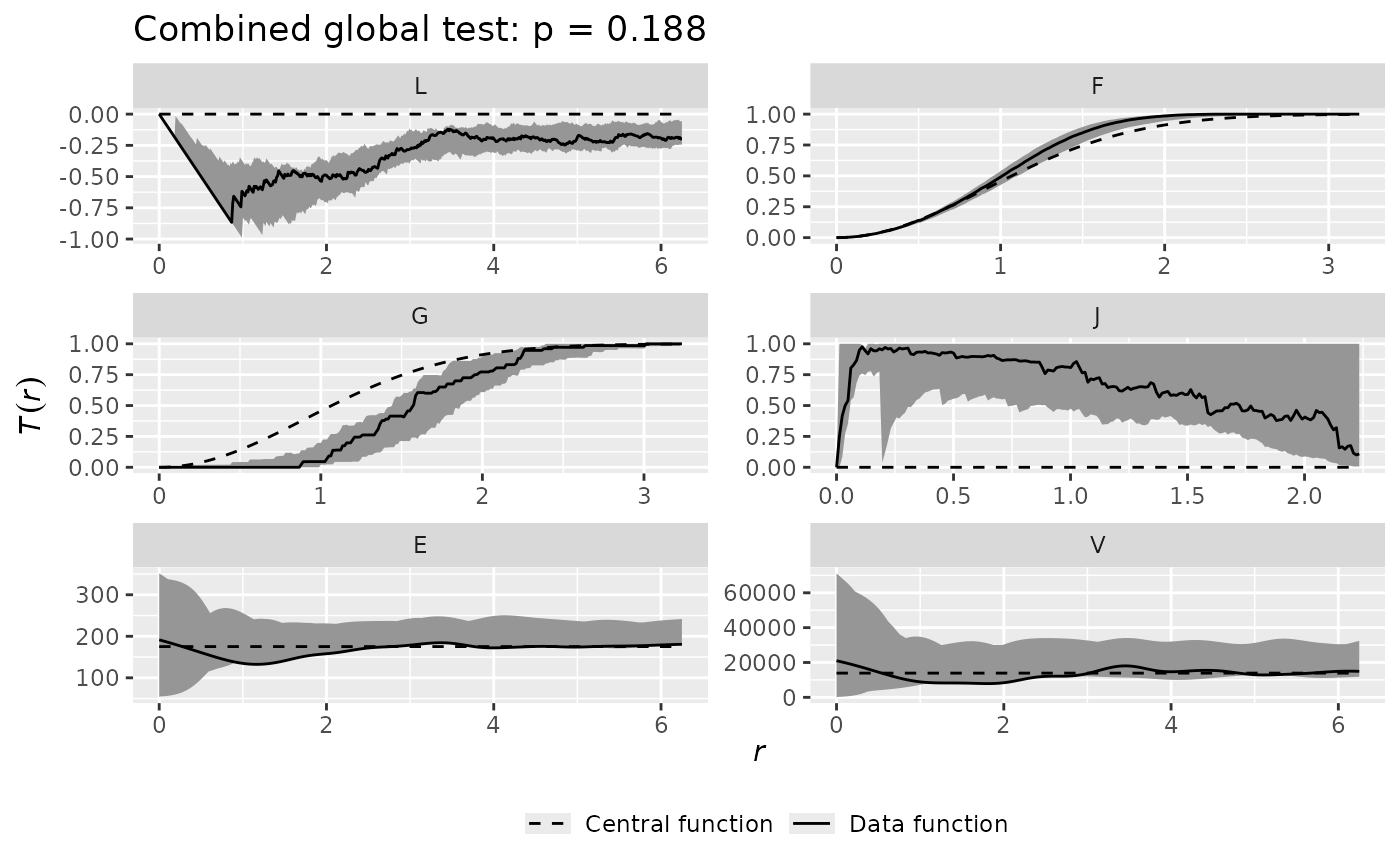

plot(example_model_fit, which = 'combined')
#> Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
#> ℹ Please use tidy evaluation idioms with `aes()`.
#> ℹ See also `vignette("ggplot2-in-packages")` for more information.
#> ℹ The deprecated feature was likely used in the GET package.
#>   Please report the issue at <https://github.com/myllym/GET/issues>.
#> Warning: `aes_()` was deprecated in ggplot2 3.0.0.
#> ℹ Please use tidy evaluation idioms with `aes()`
#> ℹ The deprecated feature was likely used in the GET package.
#>   Please report the issue at <https://github.com/myllym/GET/issues>.

# }
